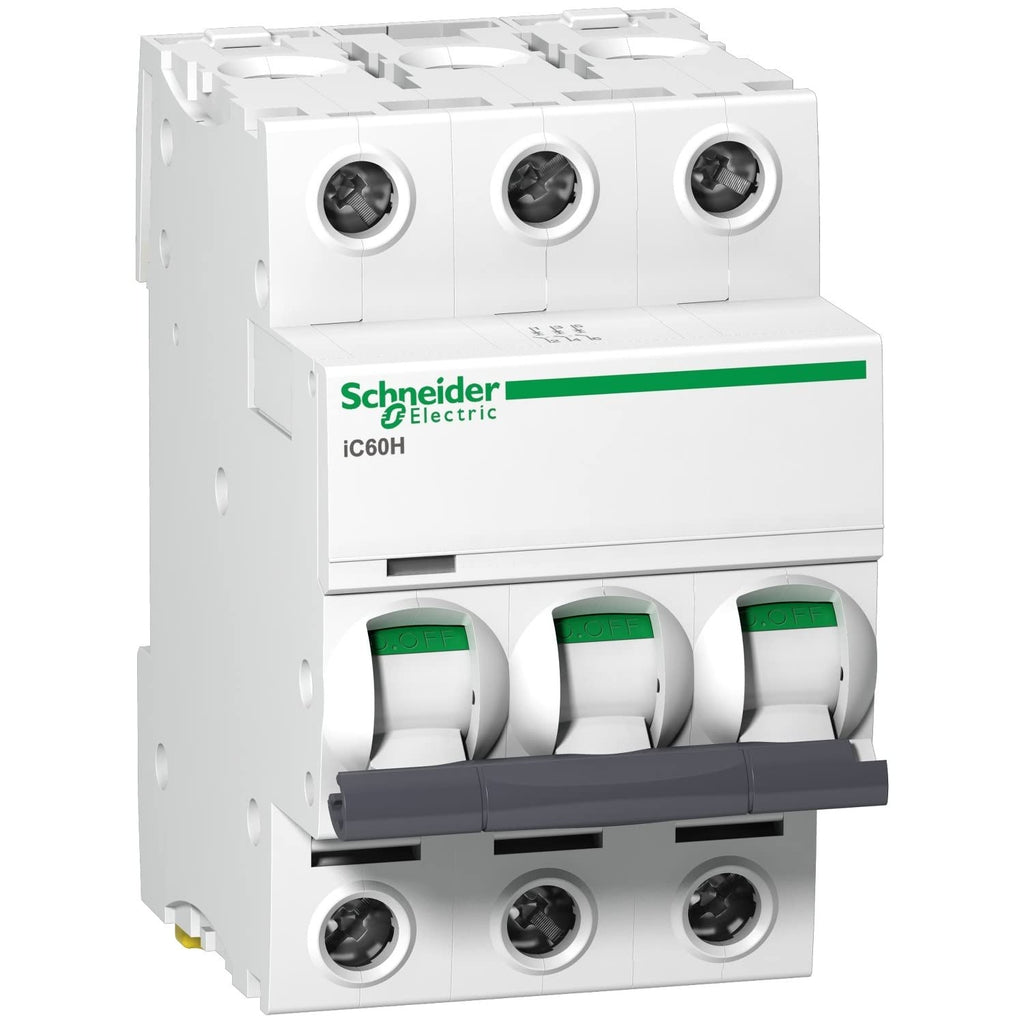

Schneider Electric Acti9 iC60H 3 Poles 16A D Curve Miniature Circuit Breaker V1202-V1-SCDA9F55316
Brand: Schneider Electric
Color: White
Features:
- Multistranded low voltage miniature circuit breaker
- With double tunnel terminals
- Protects circuits against short circuit and overload current
- Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit
- Its fast closing mechanism independent of manual operation improves its service life
PartNumber: A9F55316
Details:
Schneider Electric Acti9 iC60H 3 Poles 16A D Curve Miniature Circuit Breaker is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Package Dimensions: 0.3 x 0.2 x 0.4 inches
Model: A9F55316
Item Condition: New
