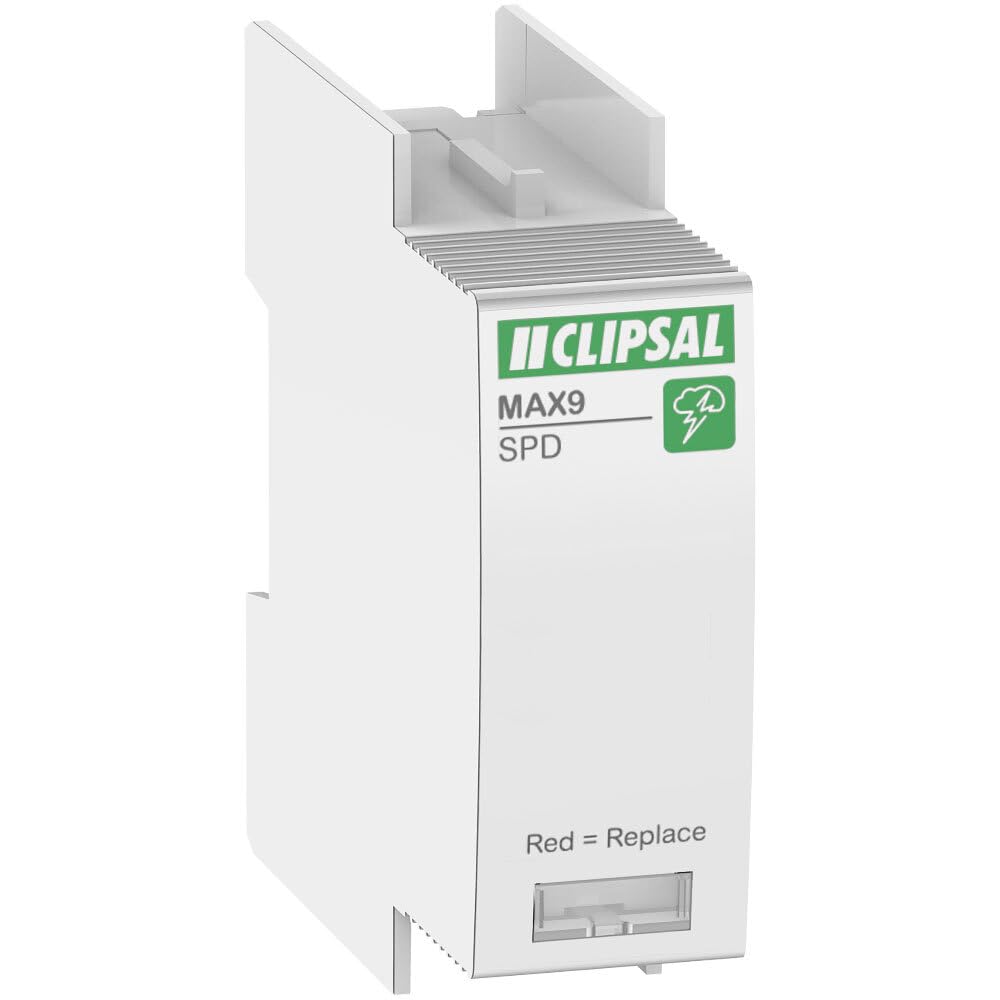

MAX9 1 Pole 40kA Cartridge Surge Protection Device V1202-V1-CLIMX9SP40C

Brand: Clipsal

Color: ‎White

Features:

• Uniform terminal heights and modular size enables neat and efficient installation
• Compatible with multiple types of screw-drivers with combination head screws
• Easy to identify when replacement is needed with indicator window on SPD
• Maximum discharge capacity of 40kA (8/20μs)
• Easy to identify when replacement is needed with indicator window on SPD

PartNumber: ‎MX9SP40C

Details:

Clipsal MAX9 1 Pole 40kA Cartridge Surge Protection Device is made of high quality material. Uniform terminal heights and modular size enables neat and efficient installation. Replacement cartridges available as spare part. Compatible with multiple types of screw-drivers with combination head screws. Easy to identify when replacement is needed with indicator window on SPD. Specifications: Device application: distribution, Local signalling: flag, rated operational voltage: 240 V +/- 6 % AC 50/60 Hz, Mounting mode: clip-on, Mounting support: DIN rail, Standards: IEC 61643-11:2011, EN 61643-11:2012, IP degree of protection: IP20, IK degree of protection: IK03 conforming to IEC 62262.

Model: ‎MX9SP40C

Item Condition: New
