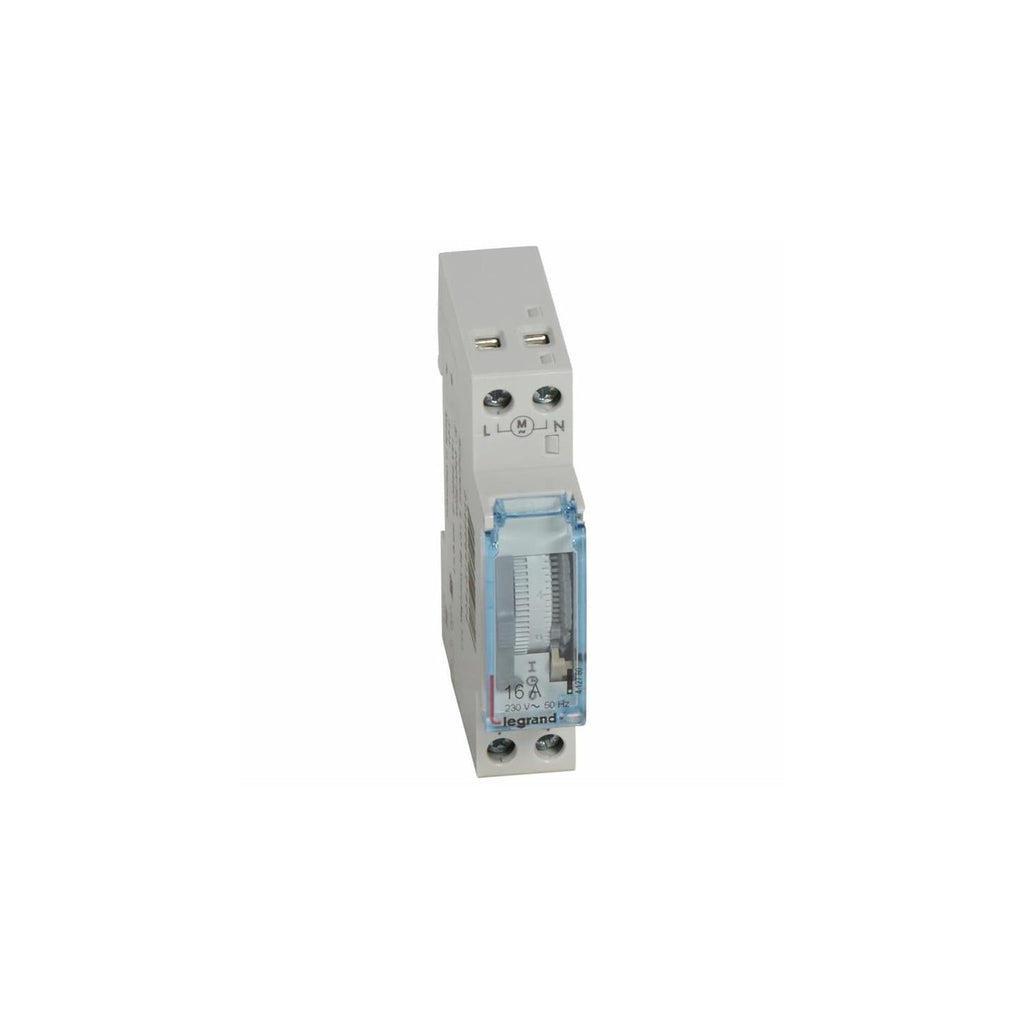

LEGRAND, MicroRex T11 412780 Timer Switch Analogue with 24 Hour Program V1202-V1-LEG412780

Brand: Legrand

Features:

• Analogue timer: The analogue timer MicroRex T11 from Legrand is equipped with a 24-hour program and can therefore be used as a daily timer.
• Assembly: The daily timer is designed for the DIN rail of your distribution board.
• Synchronous motor: thanks to the built-in synchronous motor, the timer delivers a grid-synchronous gear accuracy.
• Switching time: the shortest switching time is 15 minutes.
• ON-AUTO OFF: The timer has a manual switch and captive switching segments.
• Technical details: MicroRex T31F, analogue daily timer, operating voltage 230 V and 50 Hz, 3-module, 1 channel, protection class IP20, switching output: 1 N/O contact, without power reserve, lid can be sealed

Details:

Legrand MicroRex T11, analogue daily timer with synchronous motor according to VDE 0631 part 1 and part 2-7, EN 60730-1 and EN 60730-2-7. With manual switch ON-AUTO OFF. Technical features: - with synchronous motor (mains synchronous gear accuracy) - for distribution installation - 1 channel - operating voltage 230 V 50 Hz - manual switch: ON-automatic OFF - captive switching segments - shortest switching time: 15 min. - Switching output: 1 N/O contact - Power reserve: 100 hrs. - Accuracy per day: 2.5 s - Switching capacity: 16 A~ - Lid sealable - Operating temperature: -10°C to +55°C - Protection class: IP20.
