40 Series Iconic Control Link Remote Switch Mechanism Momentary Push Button V1202-V1-CLI41EPBMVW

Brand: Clipsal

Color: ‎White

Features:

• Momentary pushbutton uses regular wiring
• Delivers multi-device control of dimming and switching for any ControlLink-compatible mechanism
• Provides control of lighting levels without a load
• EU RoHS directive compliant

PartNumber: ‎41EPBM-VW

Details:

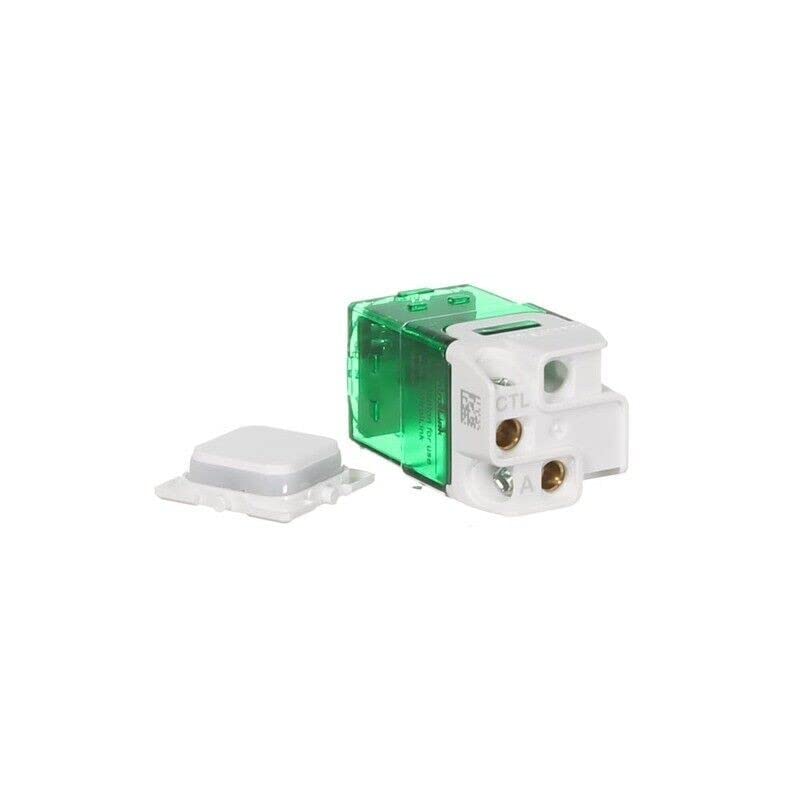

Clipsal Iconic Control Link Remote Switch Mechanism Momentary Push Button uses regular wiring to deliver multi-device control of dimming and switching for any ControlLink-compatible mechanism. This 2-wire momentary pushbutton provides control of lighting levels without a load. Specifications: Range: Clipsal Iconic; Product or component type: timer; Colour tint: vivid white; Sustainable offer status: Green Premium product; Device presentation: mechanism; Range compatibility: Clipsal Iconic cover plate; Device mounting: flush; Actuator: push-button; Fixing mode: clip-in; Connections - terminals: screw terminals; Type of packing: box; Sale per indivisible quantity: 1; Remote control type: Wiser room application; rated operational voltage: 220...240 V AC 50 Hz; Operating distance: 30 m; Control signal type: ControlLink; Connections - terminals: screw terminals; Number of terminals: 2; Wiring configuration: 2-wire; Height: 22 mm; Width: 22 mm; Depth: 40 mm; Embedding depth: 38 mm; Standards: AS/NZS 60669.2.1; Ambient air temperature for storage: 0...60 °C; Ambient air temperature for operation: 0...45 °C; Relative humidity: 0...90 %; REACh Regulation: Reference contains Substances of Very High Concern above the threshold; EU RoHS Directive: Compliant; Mercury free: Yes; RoHS exemption information: Yes; China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your information; Environmental Disclosure: ENVPEP1708008EN; Circularity Profile: ENVEOLI1708008EN; Material: PC (UL94 V-2): top; PC MAS056 (UL94 V-2): bottom.

Package Dimensions: 0.9 x 0.9 x 1.6 inches

Model: ‎41EPBM-VW

Item Condition: New
